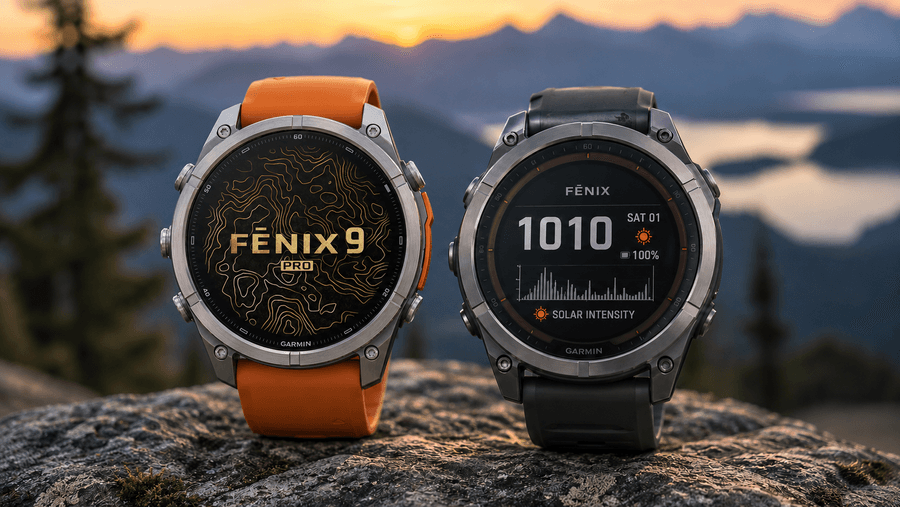

The Fenix 9 Pro Solar Is 14.5% Thicker Than the AMOLED. Orders Open Tomorrow.

Garmin's Fenix 9 launch story was all about thin. A first-ever full titanium case, a Pro that's 16% slimmer than the Fenix 8 Pro, and the biggest AMOLED the line has ever had. Every word of it true.

But the launch stream spent almost no time on the other Fenix 9 Pro: the Solar. Its spec sheet tells a different story, and it's the one you need to know before Friday, August 28, when orders open for all 34 SKUs.

The Thickness Gap: 14.5% at 47mm

Here are Garmin's own numbers for the Fenix 9 Pro, side by side:

At 47mm, the Solar is 14.5% thicker than the AMOLED. The punchline: the 47mm Solar is exactly as thick as the 51mm AMOLED. You'd have to size up to get the same wrist presence with the brighter display.

At 51mm the gap narrows to 5% (16.6mm vs 15.8mm), but that still makes the 51mm Solar the thickest watch in the entire Fenix 9 lineup.

Buyers noticed. In r/Garmin's launch thread, one commenter put it bluntly: "I was expecting nothing but was still disappointed by the Fenix 9 solar being thicker and heavier than the Fenix 8 solar." Garmin didn't help by leading every launch visual with the thin titanium AMOLED.

The Screen Gets Smaller Too

Thickness is only half the trade. The Solar models also drop down in display:

• 47mm Solar: 1.3-inch MIP at 260x260 (the AMOLED 47mm gets a 1.4-inch, 454x454 panel)
• 51mm Solar: 1.4-inch MIP at 280x280 (the AMOLED 51mm gets the headline 1.5-inch, 466x466 panel)

So the Solar buyer pays more thickness for a smaller, lower-resolution screen. The MIP's counterargument is real, though: it's always visible, it's at its best in direct sunlight, and it costs almost nothing to keep lit. The AMOLED Pro panels, by contrast, run up to 3,000 nits.

Two more Solar caveats:

• No 43mm Solar. Small wrists are AMOLED-only this generation.
• Power Sapphire lens on the Solar models (standard sapphire on the AMOLED), same split as the Fenix 8.

Battery: The Solar Math Is Closer Than You Think

Without any sun at all, the two displays are nearly tied. Garmin Rumors' breakdown of Garmin's spec sheets:

• 47mm: 18 days smartwatch mode (AMOLED) vs 21 days (Solar)
• 51mm: 31 days (AMOLED) vs 30 days (Solar)

At the big size, the AMOLED actually edges the Solar in smartwatch mode without sun. The Solar's advantage shows up where you'd expect:

• Smartwatch with solar: 21-30 days, stretching to 34-57 days with charging
• GPS only with solar: 132-186 hours, up to a headline 1,000 hours at the top end

Garmin's solar figures assume all-day wear plus three hours outside daily in 50,000 lux. If your training happens at dawn, indoors, or under canopy, discount those numbers hard.

One number Garmin hasn't published at all: always-on display battery life for the AMOLED. Unlike past AMOLED launches, there are no AOD figures on the spec sheet yet. If you run always-on, that's the number that actually decides your charging routine, and right now nobody outside Garmin knows it.

Which One Should You Buy?

• Pick the AMOLED if: you want the thinner watch, the brighter and bigger screen, and faster-feeling maps on that 1.5-inch panel. This is the watch Garmin built the generation around, and it's the default choice for most wrists.
• Pick the Solar if: you do genuinely long days outside (ultras, thru-hikes, expedition climbing), you charge weekly or less, and you don't mind the extra 2mm at 47mm. The 1,000-hour GPS ceiling is the only spec in this lineup nobody else can touch.
• Skip the 51mm Solar for battery reasons. The AMOLED 51mm already does 31 days in smartwatch mode without sun. At that size, Solar only pays off if you're truly living off-grid.
• Fenix 8 Solar owners: the new Solar is thicker than the watch you're wearing. If thickness is why you wear a Fenix, test the 47mm Solar in person before ordering.

Bottom Line

The Fenix 9 Pro AMOLED is the thinner, brighter, more modern watch, and Garmin knows it: that's the one that got the titanium story and the launch-stage time. The Solar remains the endurance specialist, but this year it asks more of your wrist than ever for the privilege.

Orders open tomorrow, Friday August 28, on Garmin.com. Our full Fenix 9 and Fenix 9 Pro launch coverage has the complete lineup, all 34 SKUs, and the two upgrades that didn't ship.

Sources: Garmin's Fenix 9 product pages, Garmin Rumors (August 25, 2026 thickness breakdown), the Garmin Wiki Fenix 9 spec compilation, the5krunner, and r/Garmin.
